PGA - Pin Grid Array

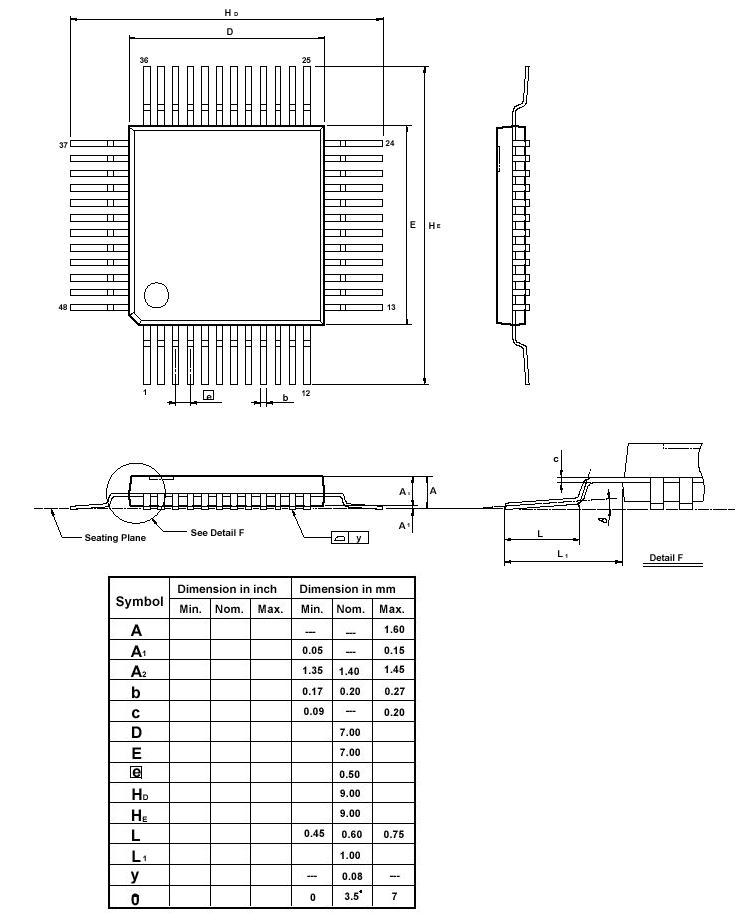

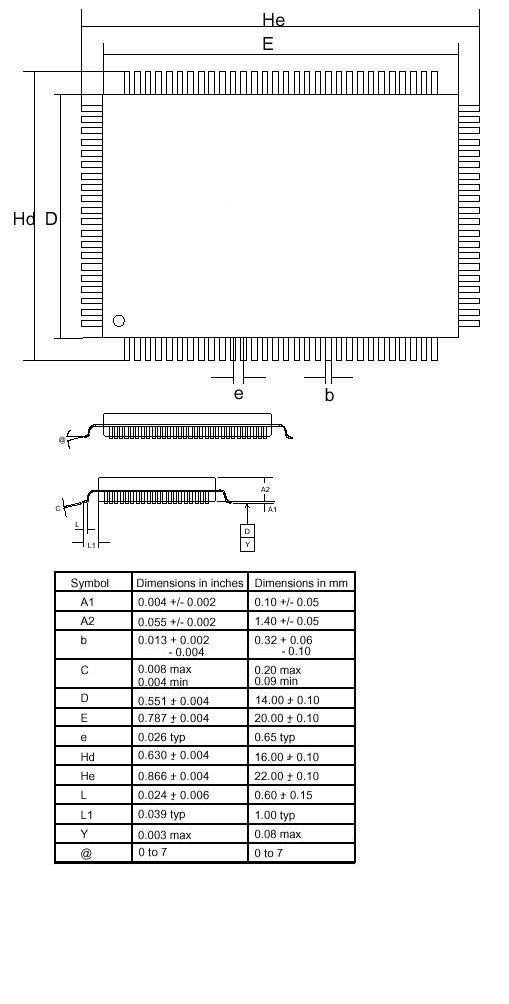

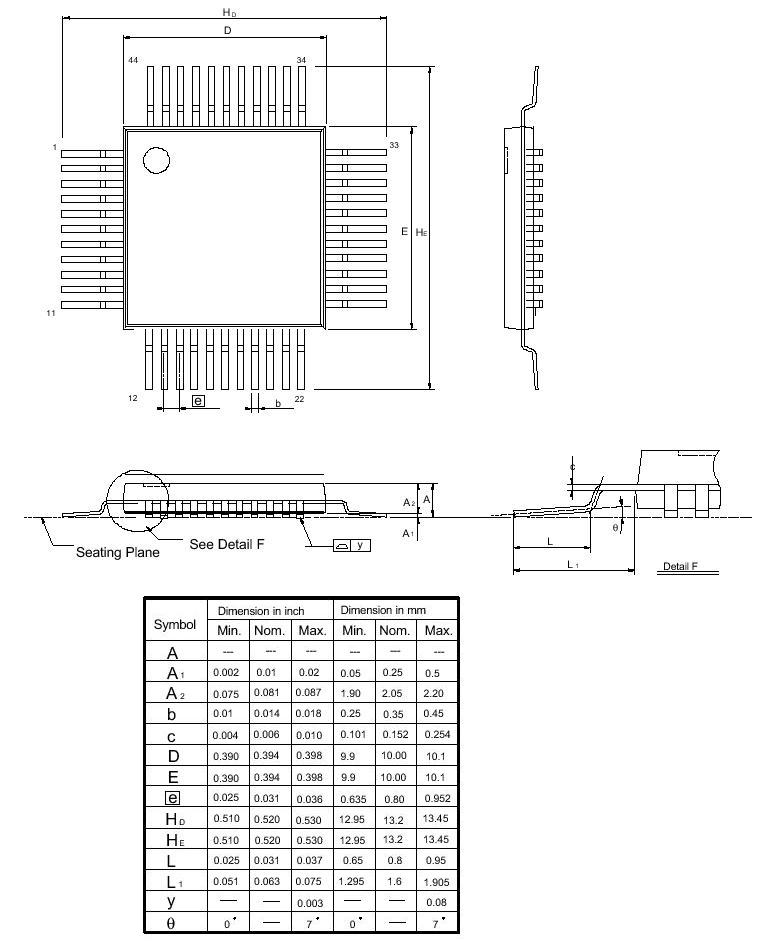

QFP - Quad Flat Pack.See: Footprint

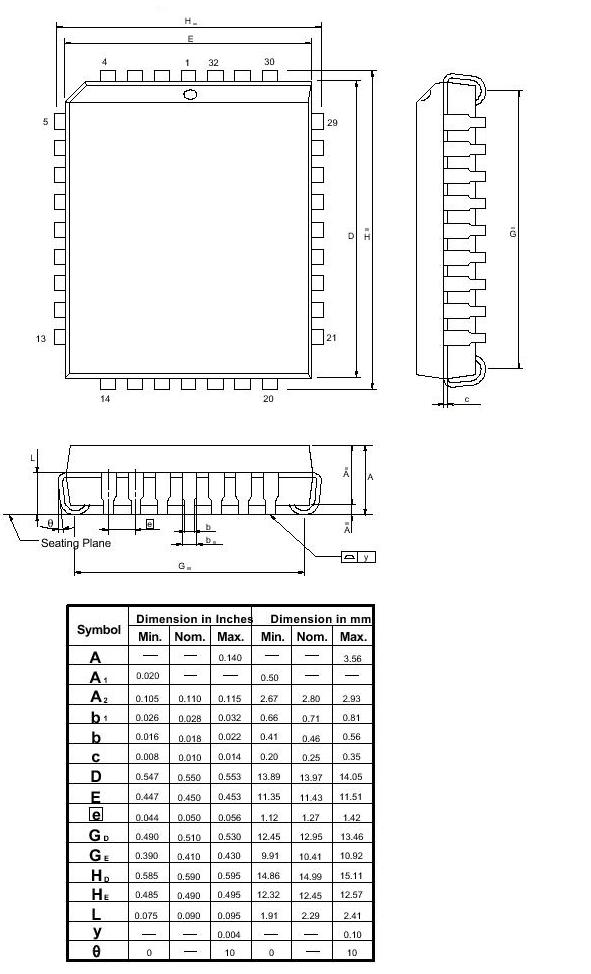

PLCC - Plastic Leaded Chip Carrier. See: Footprint

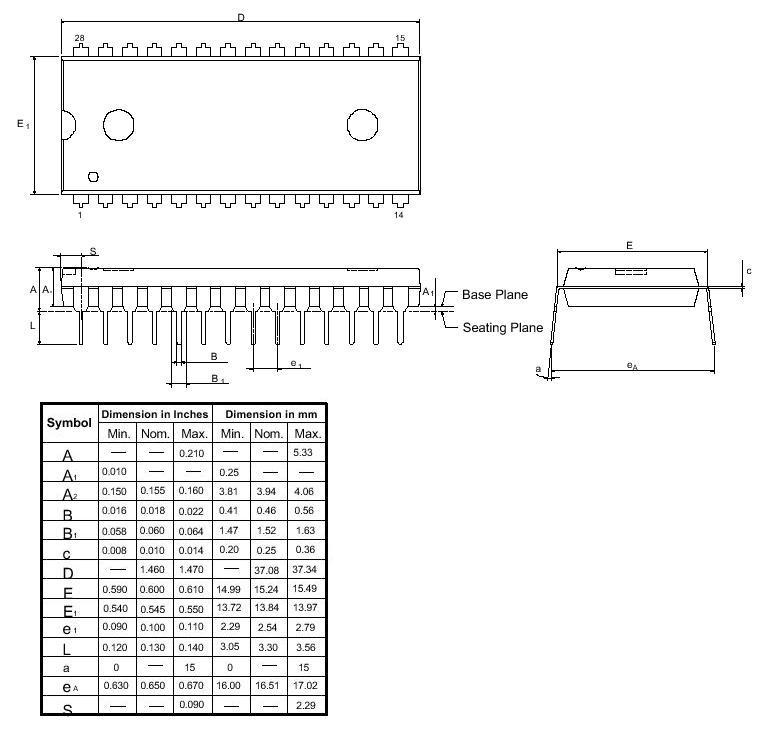

DIP - Dual Inline Package. See: Footprint
PDIP - Plastic Dual Inline Package. See: Footprint
CDIP - Ceramic Dual Inline Package

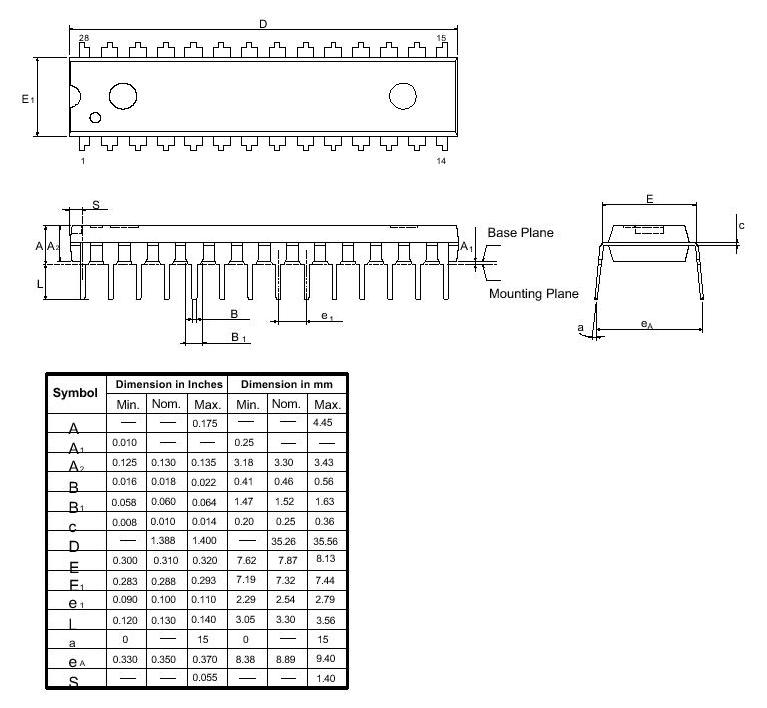

SDIP - Skinny DIP (300 mil body) See: Footprint

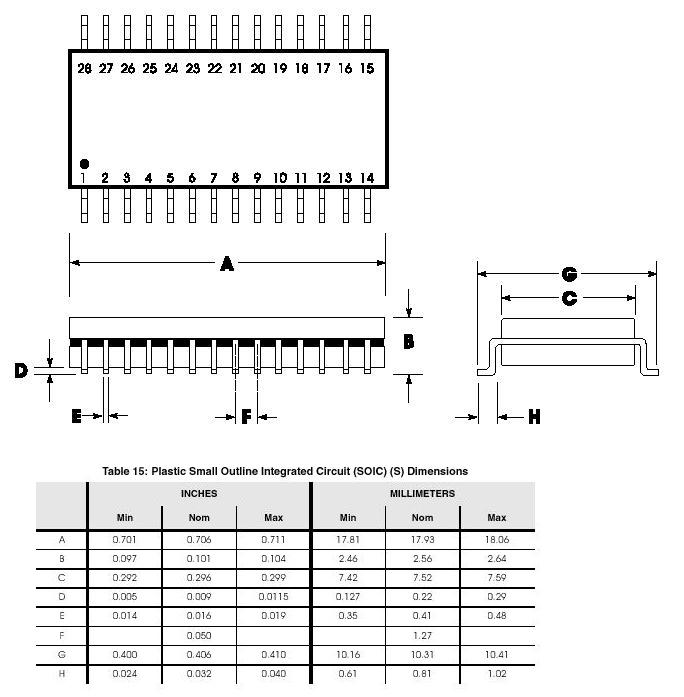

SOIC - Small Outline IC. See: Footprint
BGA - Ball Grid Array.
SOJ - Small Outline. See: Footprint

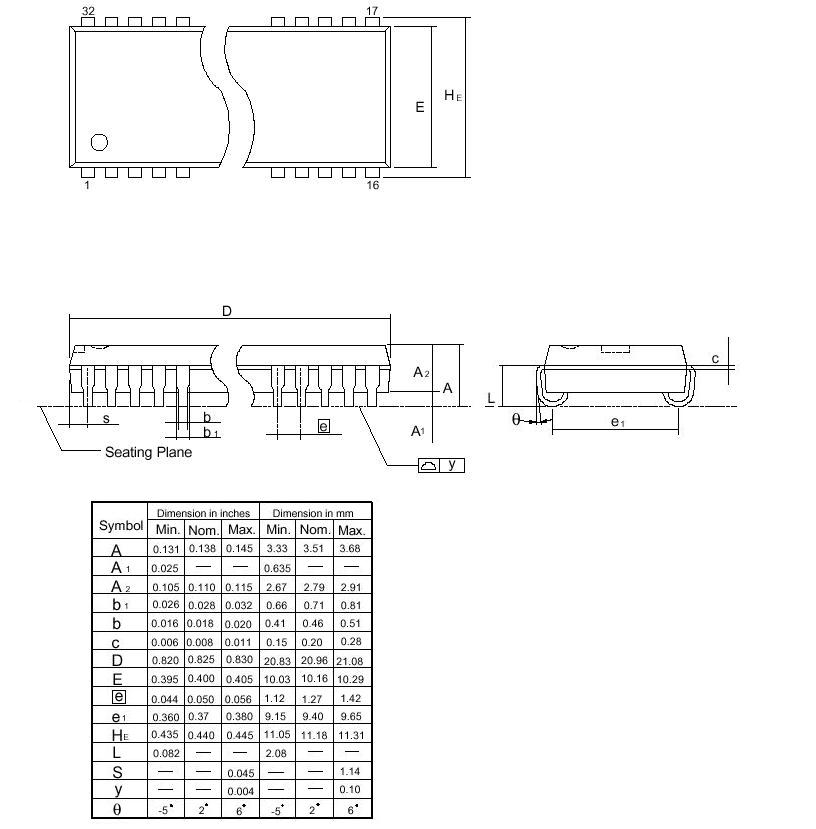

WSOJ - 400mil Small Outline. See: Footprint

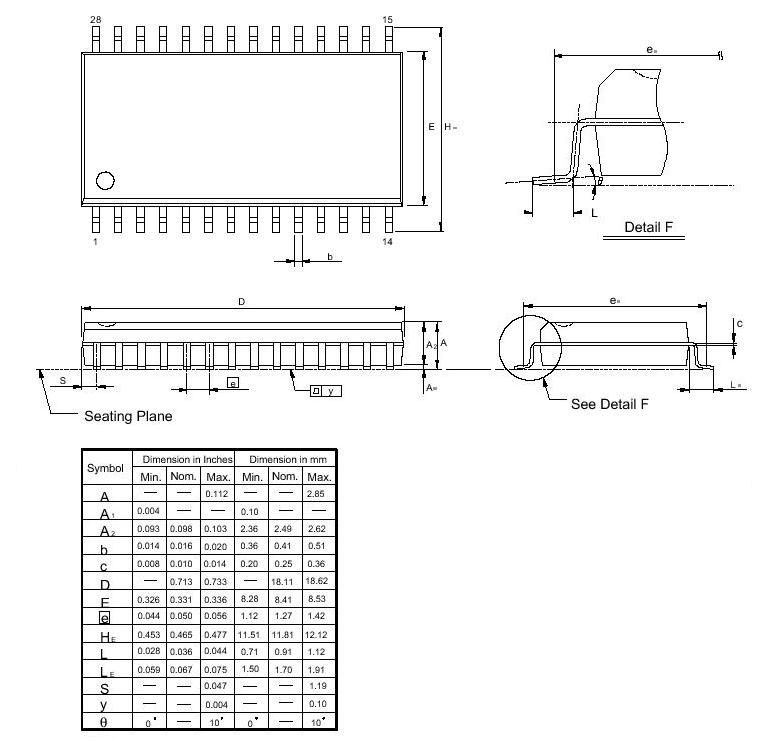

SOP - Small Outline. See: Footprint

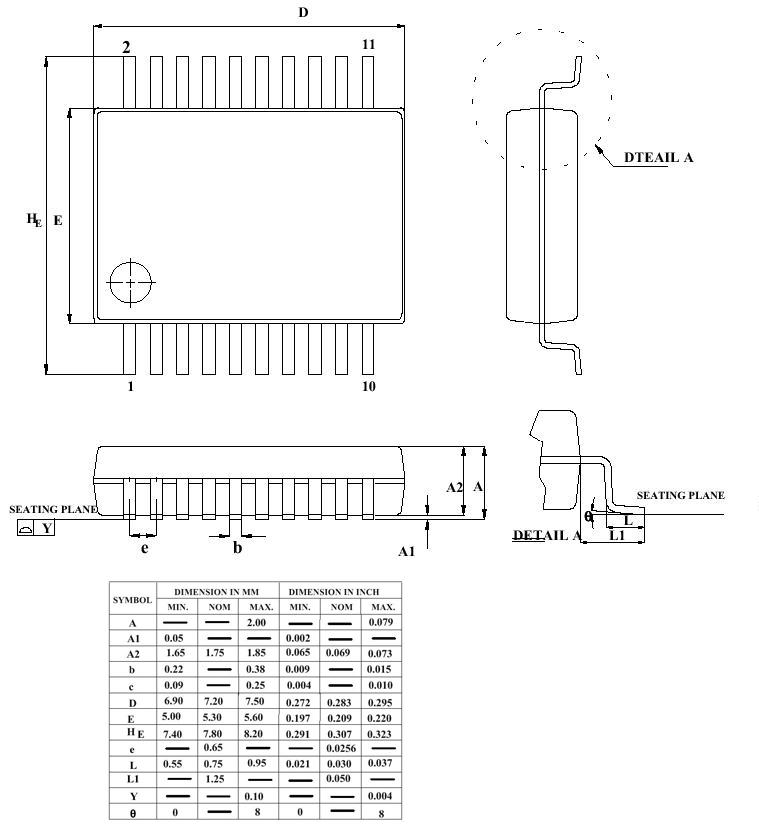

SSOP - Shrink Small Outline. See: Footprint

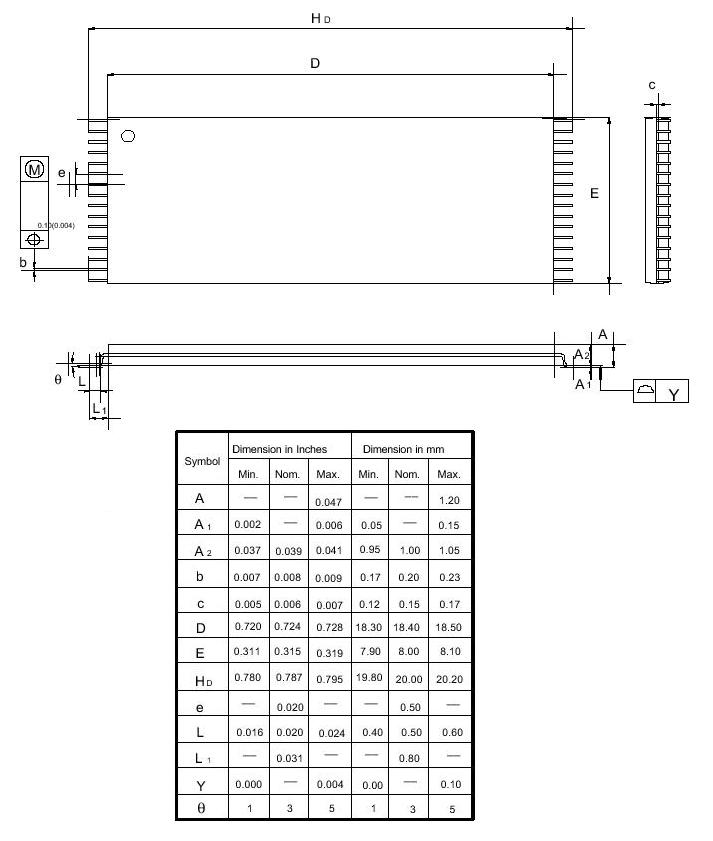

TSOP. Thin Small Outline Package. See: Footprint

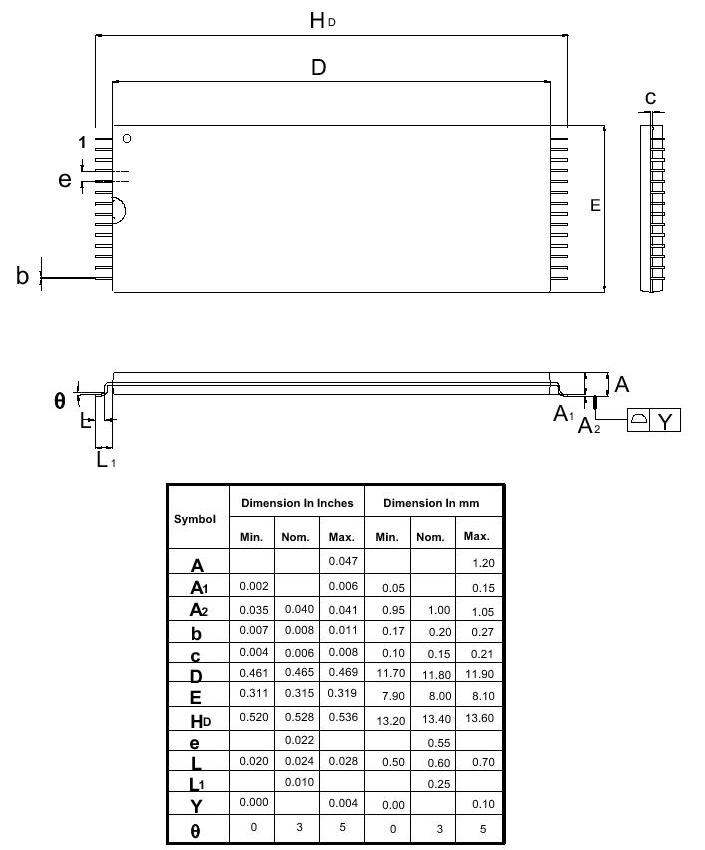

STSOP. Small TSOP See: Footprint
|file: /Techref/sockets.htm, 3KB, , updated: 2012/12/24 11:35, local time: 2017/12/13 03:18,
