Thevenin's and Norton's Theorems

A Thevenin equivalent circuit contains an equivalent voltage source in series with an equivalent resistor . A Norton equivalent circuit contains an equivalent current source in parallel with an equivalent resistor .

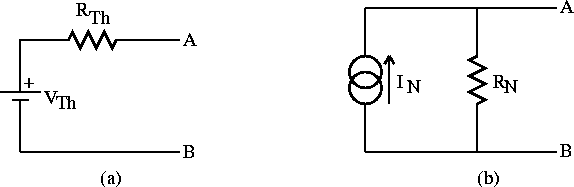

Figure 1.8:  Thevenin and Norton equivalent circuits.
